Double Mesh Clip (171)
171 (A B C D E)

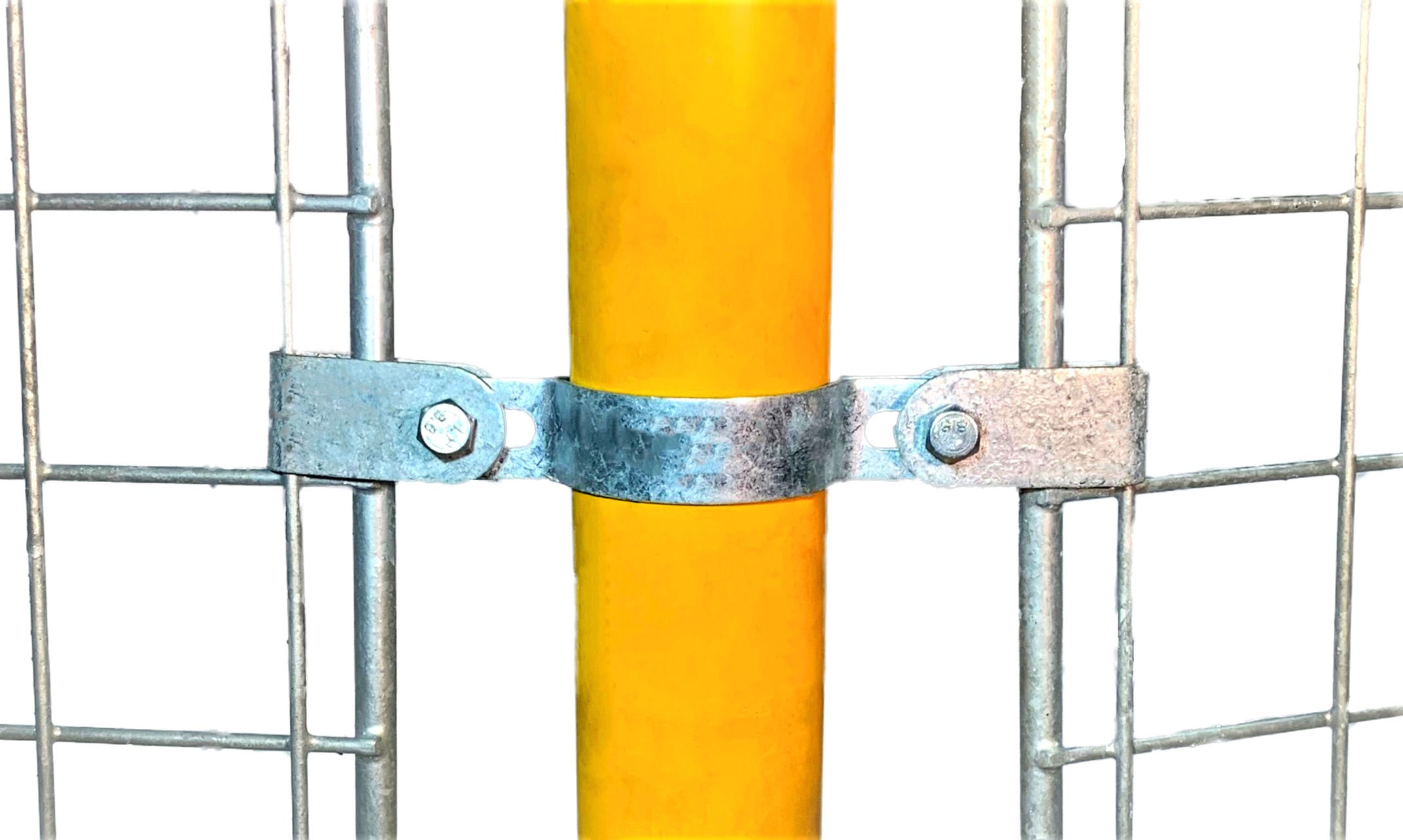

Double location weldmesh panel clip.
The slotted design of the panel clip allows modification in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt. This fitting can also be used to locate other items up to 10mm thick supplied the safety saddle is removed.
We also supply Galvanised tubes. To buy our 3.2m galvanised tube, click here. To buy our 6m galvanised tube, click here.
Please click here to view our full range of galvanised tube clamps.
A: Size to fit 26.9mm O.D. tube
B: Size to fit 33.7mm O.D. tube
C: Size to fit 42.4mm O.D. tube
D: Size to fit 48.3mm O.D. tube
E: Size to fit 60.3mm O.D. tube
If you are unsure about a certain specification or would like to enquire further please contact us on the below:
T: 0131 333 4413
E: sales@kitegroupltd.com
