Question 1

What is the optimal installation method for Kite's Freestanding Roof Edge Protection System?

Accepted Answer

Kite's Freestanding Roof Edge Protection System is typically installed with 1100mm high galvanised posts, horizontal tubes spaced at 500mm intervals, 3m post spacing, 1200mm outriggers connected to rubber weights, and double weights at run ends. A 100mm kickplate is used unless an existing roof upstand is present.

Question 2

What standards does Kite's Freestanding Roof Edge Protection System comply with?

Accepted Answer

The system is designed to comply with relevant building and health and safety regulations, including BS 13700:2021, BS 8180:2011, BS EN 13374:2004, BS 4592-0:2006+A1:2012, BS EN ISO 14122-3:2001+A1:2010, UK HSE Work at Height Regulations, and wind loading requirements under BS 6399 Part 2:1995.

Question 3

Does the system have any sustainable features?

Accepted Answer

Kite's Freestanding Roof Edge Protection System includes counterweights made from recycled plastic, helping reduce environmental impact while supporting reliable rooftop fall protection.

Question 4

Has Kite's Freestanding Roof Edge Protection System been tested?

Accepted Answer

The system has been tested to BS EN 13700:2021 with a 0.3kN load. Testing showed no yielding, fracture or separation under dry or wet conditions.

Question 5

How difficult is the installation process?

Accepted Answer

Installation is straightforward and does not require special training or drilling. Customers can request Kite's operation and maintenance manual for further installation and system guidance.

Question 6

Is an upstand necessary for installation?

Accepted Answer

If the roof does not have a minimum 100mm upstand, kickplates should be fitted at the lower part of the uprights to improve edge protection. The kickplate height should be at least 100mm.

Question 7

Does the system require drilling?

Accepted Answer

No. Kite's Freestanding Roof Edge Protection System is non-penetrative and does not require drilling into the roof surface.

Question 8

What load is the system designed for?

Accepted Answer

The system is designed and tested for a 0.3kN load. Bespoke systems can be calculated for different working loads, such as 0.7kN, subject to additional calculation fees.

Question 9

Can the system be reinstalled on another site?

Accepted Answer

Yes. The system can be dismantled, adapted and reinstalled on another site by adjusting dimensions and adding or removing parts as required.

Question 10

Is the system foldable?

Accepted Answer

The system itself is not foldable, but foldable heel clamps can be supplied to convert the system into a foldable configuration if required.

Freestanding Roof Edge Protection Systems

Designed for Safe Rooftop Access

See the System in Action

Explore Freestanding Roof Edge Protection Products

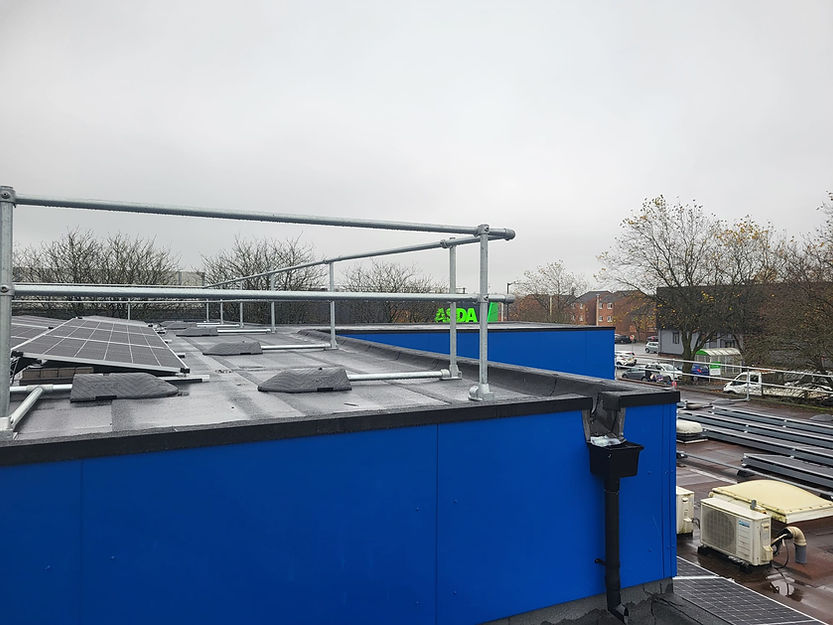

Farnworth Leisure Centre
